| TECHNICAL FEATURES |
| COLOR |
XJ: GRAPHITE | CK16 FULL MATT |

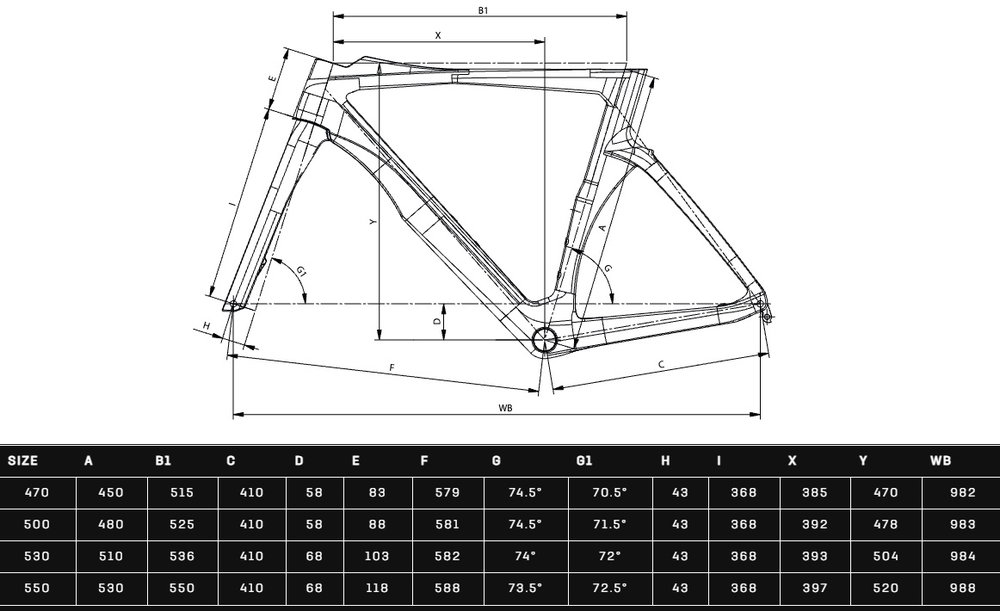

| FRAME |
OLTRE PRO CARBON W/BIANCHI CV SYSTEM AERO SHAPE, ELECTRONIC DRIVETRAIN ONLY, HEADSET 1.1/4'-1.1/4',BB-PRESSFIT 86,5X41MM, INTEGRATED SEAT CLAMP, FOR FLAT MOUNT CALIPER, INTERNAL CABLE ROUTING FOR DISC BRAKES, THRU AXLE 12X142MM |
| FORK |
FULL CARBON AERO W/BIANCHI CV SYSTEM, DISC BRAKES, INTEGRATED HEAD 1.1/4', FLAT MOUNT CALIPER, THRU AXLE 12X100MM |
| HEADSET |
FSA NO. 54 - MR137 - ACB 1-1/4'DIAM.46.9X DIAM.37X7 FSA TH970E - MR168 - ALLOY ACB 1-1/4'DIAM.46.8X DIAM.34X7 |
| SHIFTERS |
SHIMANO ULTEGRA DI2 HYDRAULIC DISC BRAKE FOR ROAD, ST-R8170, BR-R8170, FOR 160MM ROTOR |
| REAR DERAILLEUR |
SHIMANO ULTEGRA DI2 12SP, RD-R8150 |
| FRONT DERAILLEUR |
SHIMANO ULTEGRA DI2 12SP, FD-R8150 |
| CRANKSET |
Shimano, Ultegra 12sp, FC-R8100, Ultegra hollowtech 2, for rear 12- speed, 52x36T, Crank Length: 170mm-47/54cm, 172.5mm-55/57cm |
| BOTTOM BRACKET |
SHIMANO, SM-BB72-41B, PRESS FIT FOR ROAD, BEARING, INNER COVER |
| CHAIN |
SHIMANO, ULTEGRA 12 SP, CN-M8100 |
| BRAKES |
SHIMANO BR-R8170 HYDRAULIC DISC BRAKE, INCLUDED IN THE SHIFTER |
| ROTOR |
SHIMANO CENTER LOCK TYPE W/ICE TECH, 160MM FRONT REAR |
| WHEELS |
VELOMANN CARBON V50R 50MM PROFILE, 700X21C, HG BODY, UD CARBON FIBER, TUBELESS READY AND CLINCHER, INTERNAL WIDTH: 21 MM, WEIGHT PER SET: 1.630G |
| TIRE |
PIRELLI P ZERO™ RACE SL TLR , 28-622, 120 TPI |
| STEM |
INTEGRATED HANDLEBAR INTEGRATED AERO BAR, MATERIAL CARBON, DROP 125MM, REACH 80MM, DI2 COMPATIBLE EXT: 90X400-47/50CM ; 100X420-53CM ; 110X420-55/57CM; 120X440-59/61CM |
| HANDLEBAR |
INCLUDED IN THE STEM |
| GRIPS |
VELO SOFT MICROFIBER TAPE, BLACK |
| SEATPOST |
OLTRE FULL CARBON AERO SPECIAL DIMENSION SEATPOST, 20MM OFFSET, LENGTH: 280MM-47CM, 300MM-50/53CM, 350MM-55/59CM |
| SADDLE |
VELOMANN MITORA139 HYPER, OPEN FLOW, CARBON RAILS, CARBON-REINFORCED NYLON, LARGE 139MM LENGTH 250MM |
| ※ |
メイン画像は完成車イメージです。仕様は上記をご確認ください。また仕様は予告なく変更する場合がございますのでご了承ください。 |
